LV Power Cables

LV Power and Control Cables

Introduction

ASH Low Voltage (LV) power and control cables are crucial components in electrical systems, designed for applications up to 1,000 volts (1 kV). These cables are used in various indoor and outdoor settings, including power plants, industrial and infrastructure projects, and in the distribution of electricity to residential and commercial loads.

Applications

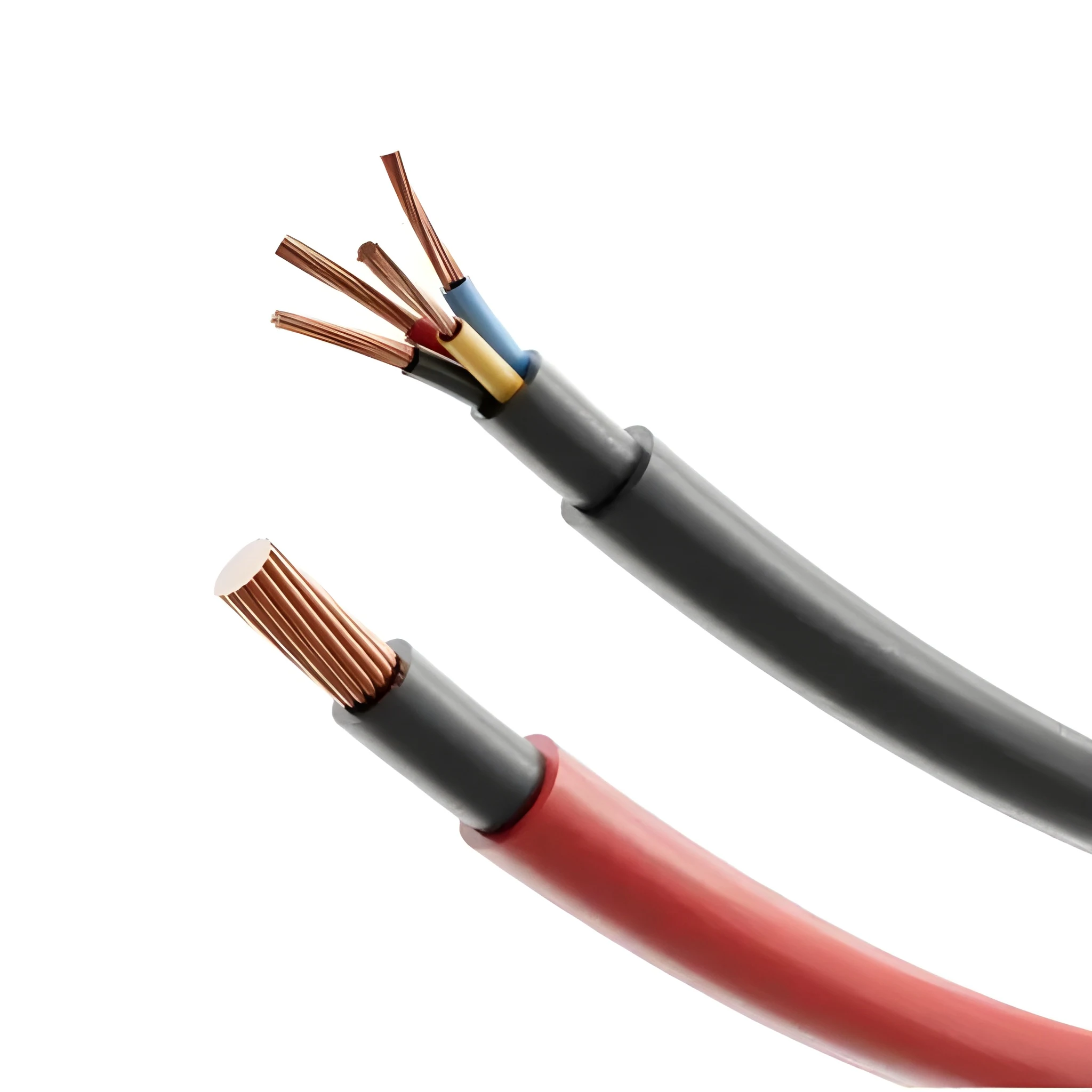

ASH LV power and control cables come in 300/500V and 600/1000V ratings. They are available in single-core or multi-core constructions with copper conductors. Insulation options include Polyvinyl Chloride (PVC) or Cross-linked Polyethylene (XLPE), with designs that can be shielded or unshielded, armored or unarmored, and featuring a PVC outer sheath. Custom designs are available upon request to meet specific application requirements.

Common Designs

1. ASH POWER SOLID CU-PVC-PVC 300-500V to IEC 60227-4.
2. ASH POWER STRANDED CU-PVC-PVC 300-500V to IEC 60227-4.
3. ASHPOWER-SINGLE CORE CU-PVC-PVC 0.6-1KV to IEC 60502-1.
4. ASHPOWER-SINGLE CORE CU-XLPE-PVC 0.6-1KV to IEC 60502-1.
5. ASH POWER MULTI CORE CU-PVC-PVC 0.6-1KV to IEC 60502-1.
6. ASH POWER MULTI CORE CU-XLPE-PVC 0.6-1KV to IEC 60502-1.
7. ASHPOWER-SINGLE CORE CU-XLPE-AWA-PVC 0.6-1KV to IEC 60502-1.
8. ASHPOWER-MULTI CORE CU-XLPE-SWA-PVC 0.6-1KV to IEC 60502-1.
9. ASH CONTROL-MULTI CORE CU-XLPE-SWA-PVC 0.6-1KV to IEC 60502-1.
10. ASHPOWER-MULTI CORE CU-XLPE-CUT-PVC-SHIELDED 0.6-1KV to IEC 60502-1.4o
